Lifting hook: The rotating frame flipping device can realize the automatic fixation of the hook at the final position. During the user's use, it effectively saves time and labor when starting and ending the crane operating, greatly reduces the work intensity, and realizes easy operation.
Boom structure: The boom adopts a lower hexagonal cross-section, which effectively improves the bending resistance of the cross-section and enhances the carrying capacity. The boom body is built-in with a single-cylinder cable-pulled multi-section boom telescopic control technology, which is reliable and efficient.
Large span square box outriggers: The outriggers have a large span and can be used in a variety of working environments to improve the stability of the whole machine. Square box outriggers improve the outrigger support capacity and reduce the overall weight of the cylinder.
Operation: The turntable is operated by a high-position seat, with four-way operation and multiple operation modes to meet the needs of different customers.
Hydraulic system: Dual-pump proportional confluence hydraulic system, using compound action flow self-distribution control technology, linkage flow distribution is more reasonable, and compound operations are more efficient.
Safety device: Overwinding protection device. If the hook is overwinding due to the user's negligence or unfamiliarity with the lifting operation principle, the overwinding alarm device will promptly alarm and remind the operator to stop retracting the hook to prevent personal and property safety caused by wire rope breakage.

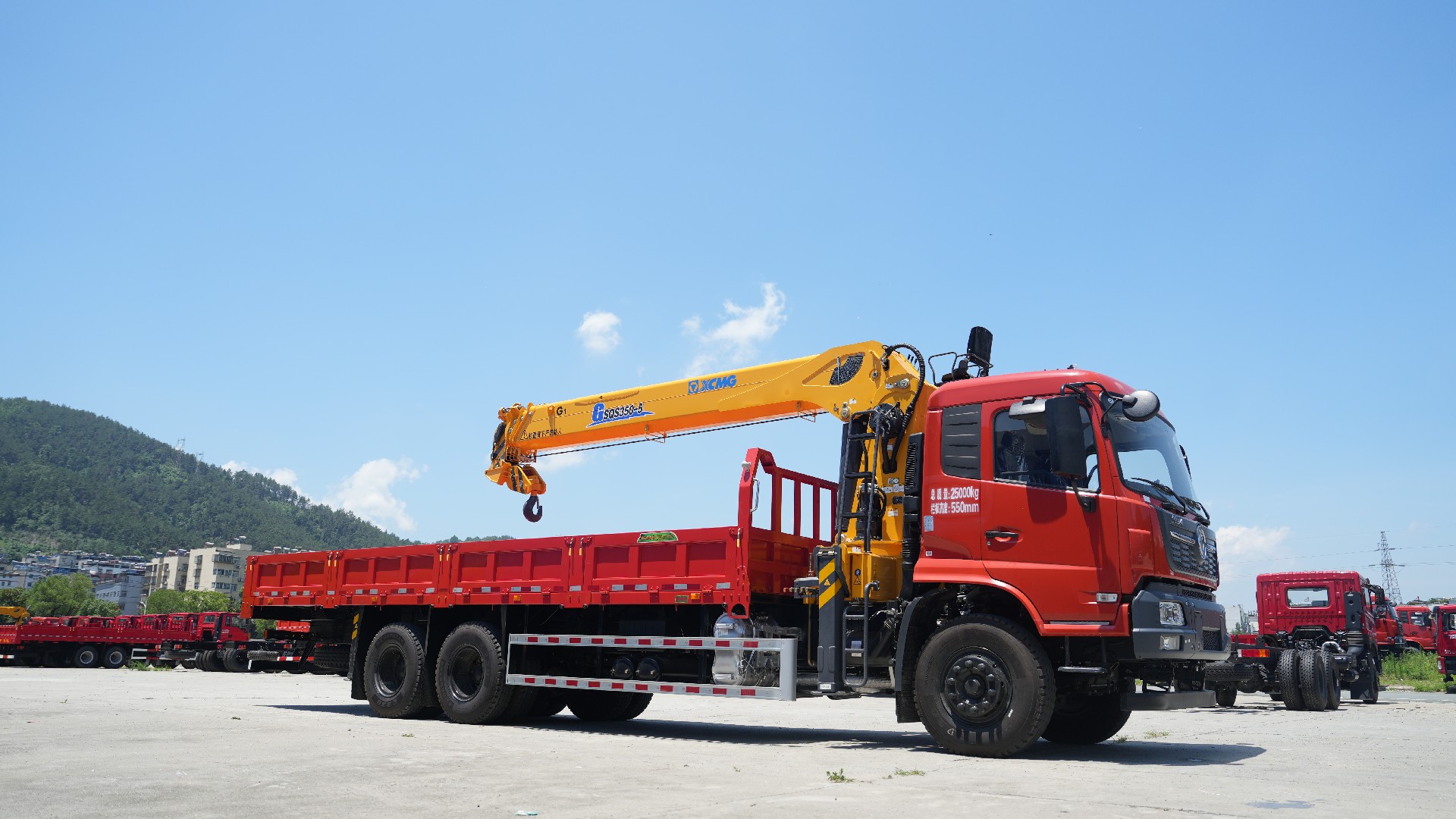

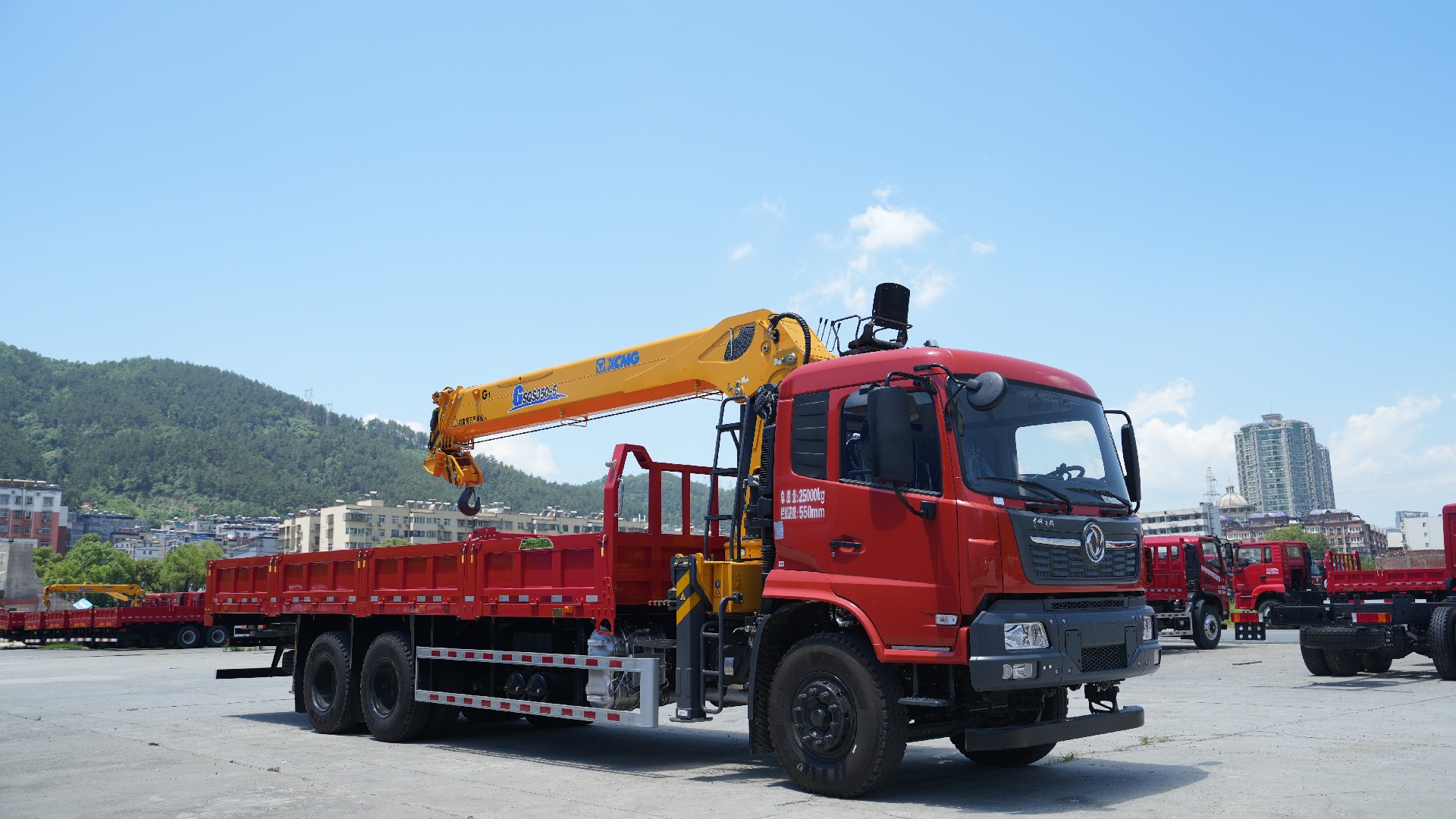

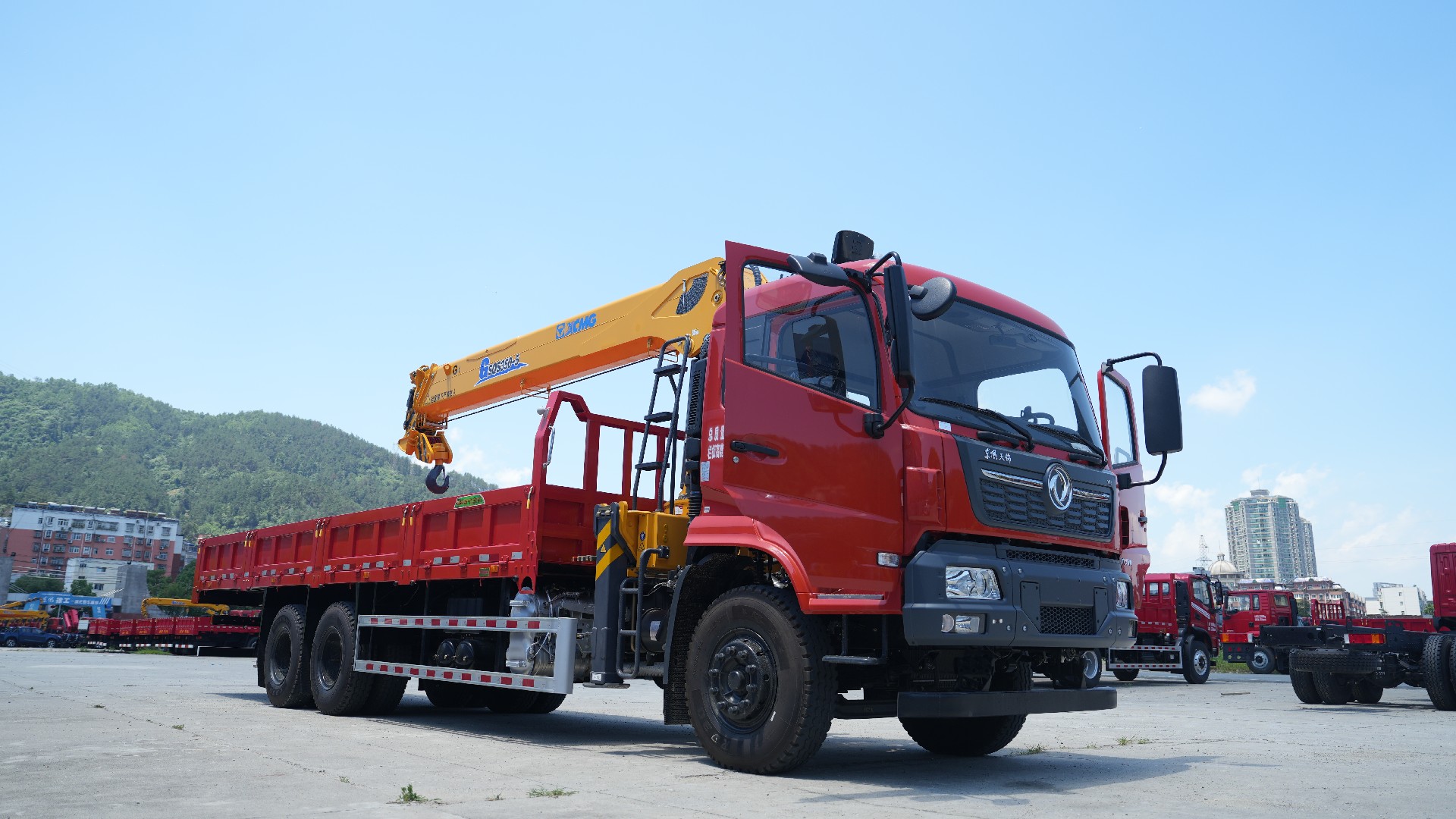

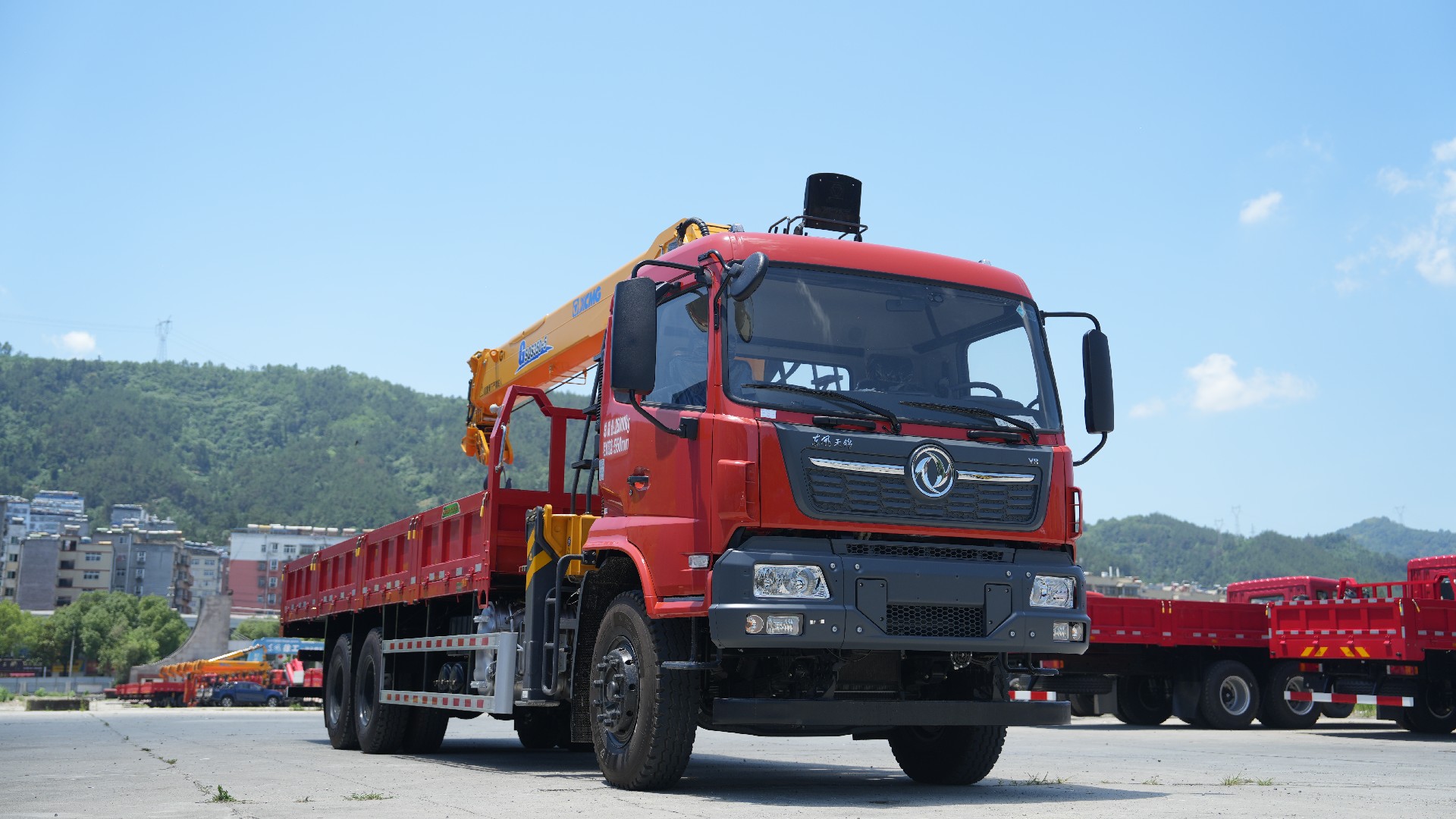

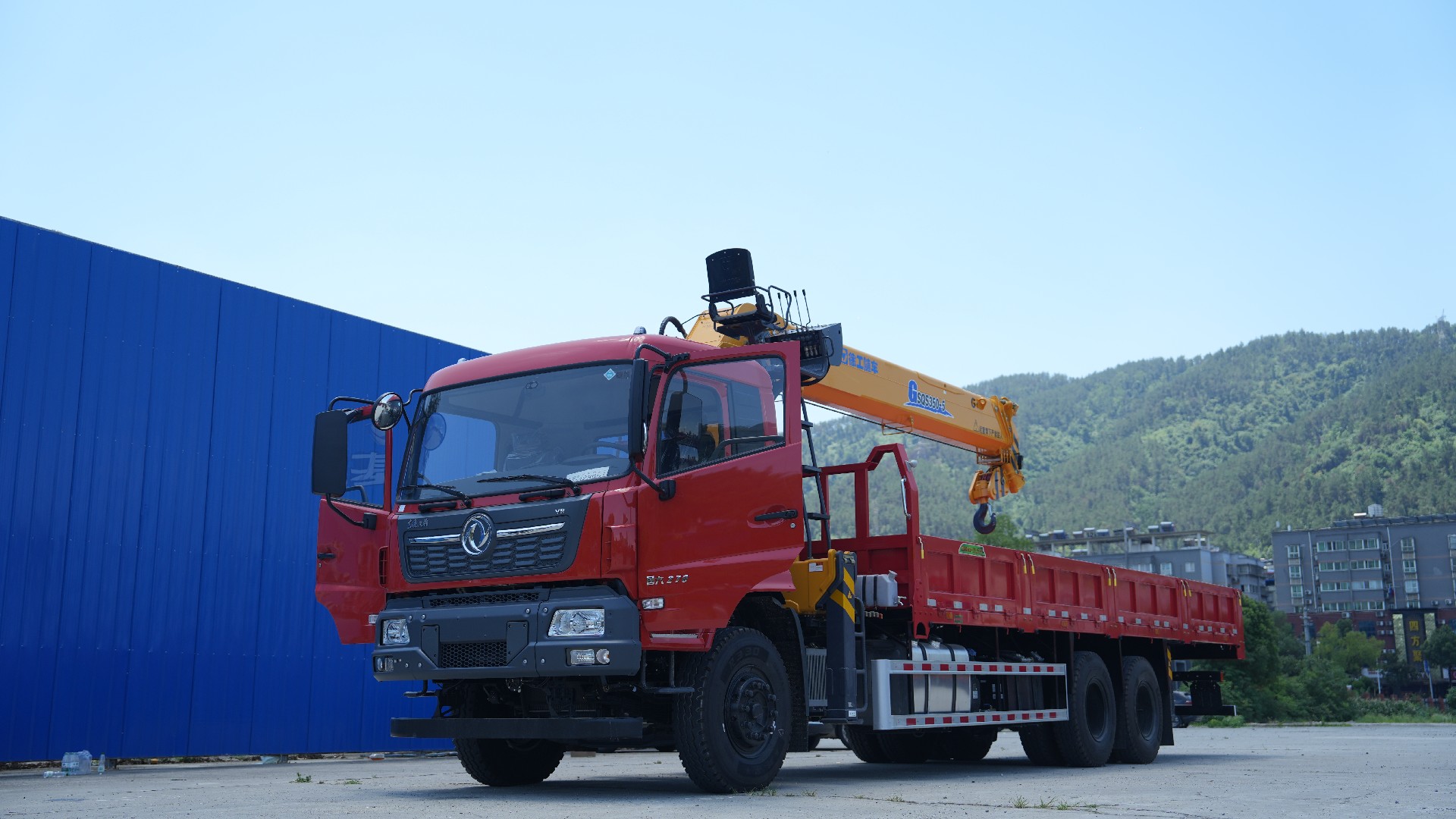

Dongfeng Tianjin Yuchai 270HP new cab truck crane special chassis
Vehicle announcement model | DFH5250JSQBX3, ABL5250JSQB3, ABL5250JSQB3A, ABL5250JSQB3B |
Engine | YCS06270-60 |
Gearbox | Shaanxi Gear 9JS119TA Gearbox (with Synchronizer) |
Wheelbase | 4350+1350, 4800+1350, 5700+1350mm |
Front/rear axle | 6T/10Tx2, 6T/13Tx2 |
Driver cab | D560 Luxury flat-top engineering cab |
Frame | 300mm straight through three-layer with wing plate |
Tyre | 11.00R20 18PR |
Leaf Spring | 8/10 |
Number of passengers allowed | 3 people |
Overall dimensions | 12000, 10310, 10900×2500, 2550×3750, 3850, 3950, 3980, 3990 |
Container size | 6600, 6700, 7100, 7200, 7300, 8000, 8100, 8200, 8300, 8400, 8500, ×2400, 2450×550, 600, 800 |
Curb Weight | 15100, 15600, 15900, 16200, 16500, 16800, 17200, 18100, 18400, 18800 |
Other configurations | With power take-off, remote throttle, original air conditioner, airbag seat, driving recorder, central locking remote control key, multi-function steering wheel, four-in-one lock |
The data of Truck-mounted crane SQS350G are as follows:
Main technical parameters table
Category | Project | Unit | Parameter |
Main performance parameters | Maximum lifting torque | kN•m | 360 |
Maximum lifting mass | kg | 14000 | |
Maximum working range | m | 19.1 | |
Maximum lifting height | m | 21 | |
Boom length | m | 5.82~19.6 | |
Amplitude range | ° | 0~75 | |
Rotation angle | ° | 360 | |
Outrigger span | m | 2.45~7.56 | |
Lifting speed | m/min | ≥ 17 (4 multiplier/4th layer) | |
Product weight | kg | 5723 | |
Hydraulic system parameters | System rated flow | l/min | 63+50 |
Rated working pressure | MPa | 28 | |
Recommended power | kw | 54 | |
Working environment temperature | ℃ | -25℃ ~ +40℃ | |
Hydraulic oil tank capacity | L | 240 |
Configuration Introduction
Main components configuration | |
Components name | Configuration Introduction |
Lifting hook | Adoption of swivel frame flip device can realize automatic fixation of the hook in the final position. |
Boom assembly | Single cylinder lasso + telescopic arm (basic arm + four-section telescopic arm) |
Turntable | Used to arrange the lower support point and operating device of the lifting mechanism, slewing mechanism, boom and luffing. |
Outrigger | Large span square box legs (2.45m~7.56m) |
Control system | Standard high seat control mode |
Rotating mechanism | 360° continuous rotation |
Luffing mechanism | Single luffing cylinder |
Lifting mechanism | Hydraulic motor drive |
Hydraulic system | Balance valve, multi-way valve, hydraulic pipeline, realize various actions of the crane |
Others | Double-sided ladder, radiator, work light, wireless over-winding protection, remote start and stop. |
Optional Configuration | ||
Name | Configuration Introduction | |
Hydraulic oil | XA130 Hydraulic oil (low temperature) | Meet the hydraulic oil requirements of special environmental areas |
Operating method | Wireless remote control | Remote control electro-hydraulic proportional control |
Four-way control | Seat control on both sides of the base + control on both sides of the bottom of the crane | |
High seat control | Seat maneuvering at the tail of the boom for a wider maneuvering field of view | |
Auxiliary winch + auxiliary hook | Auxiliary winch + auxiliary hook | Small tonnage and high height lifting operation, fast hook speed and higher lifting efficiency |
Force Limiter | Torque limiting device | The force limiter host monitors the torque in real time and limits the action when overloaded |
Anti-overwinding unloading device | Automatic alarm and limit movement when the hook is lifted close to the end position | |
